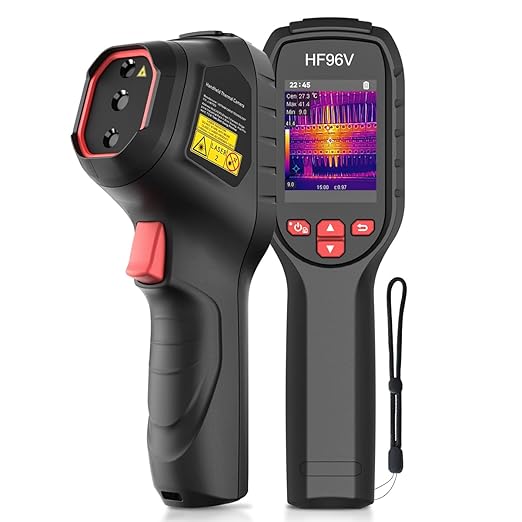

HF96V thermal imager
【Dual Cameras】Built-in 96x96 IR camera and 640x480 visible camera, the HF96V thermal imager offers 3 image modes (Fusion/Thermal/Visual) for enhanced detail and scene image contrast, helping locate anomalies more effectively. 7 selected color palettes allow you to flexibly choose the most appropriate color palette for different detection scenarios and purposes.
【Live Super Resolution】With the HSFTOOLS Super Resolution image enhancement algorithm, the HF96V thermo camera improves thermal image clarity from 96x96 to 240x240 during live viewing and capturing. The thermal sensitivity below 50mk provides high-definition details, while the 25Hz high frame rate ensures a smooth browsing experience on the screen when checking for anomalies.
【Fast Anomaly Recognition】The HF96V thermal image camera features a 50-degree field of view, providing broad coverage during scanning. It has a wide temperature range of -4°F to 1022°F, which is suitable for expansive variety of home and work sites. The camera automatically tracks maximum, minimum, and center temperature spots, intuitively displaying real-time temperature readings. Additionally, you can set temperature exceedance alarms to identify anomalies promptly.
【Easy to Use】(1)Capture visual and thermal images simultaneously with a single pull of the trigger, increasing your productivity. (2)Built-in laser pointer helps you locate the inspected object in dim environments or small areas.(3)Inspecting range is up to -4°F to 1022°F, you can also adjust to highlight specific scope you want to focus on. (4)USB Cast Screen allows you to live-share your camera screen to a laptop or computer for detailed inspection (5)4 buttons and handheld design can be easily operated with one hand or wearing gloves
【Accurate Temperature Measurement】Adopting with an advanced VOx detector, the HF96V thermal scanner can detect temperature differentials as small as 0.05℃, and ensure that the temperature readings discrepancy is within ±2%. In addition, the imager enables users to adjust the distance to objects and fine-tune emissivity settings based on specific materials, ensuring more accurate temperature measurements on a variety of substances including cement, bricks, and more.
【Dependable Support】We offer lifetime firmware updates and round-the-clock technical support. Should you have any inquiries, please reach out to our customer service team through Store / Website.

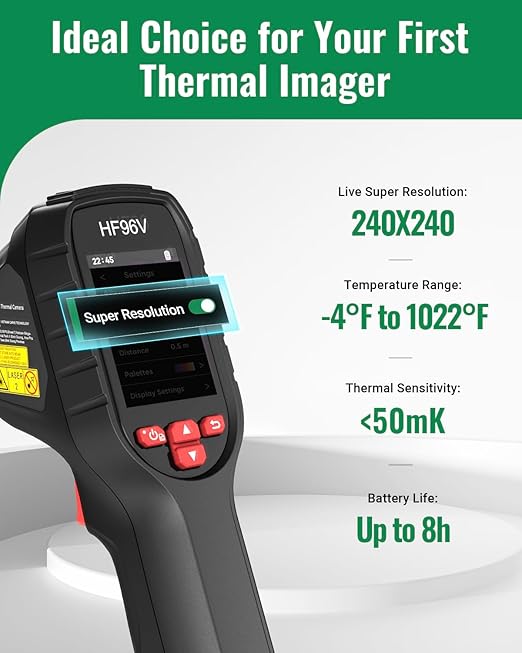

1. High Image Quality. Enable Super resolution, the image quality will be upscaled from 96*96 to 240*240. 25HZ frame rate ensures a smooth live viewing experience without freezes or lags.
2. Accurate temperature reading. The HF96 can detect temperature changes of 0.05℃ with a small difference of only ±2% , and provides emissivity reference for common objects.
3. Intuitive temperature readings. The HF96 automatically detects and displays maximum, minimum, and center temperature spots,helping you quickly identify anomalies in the scanning area.
4. 7 selected color palettes allow you to flexibly choose the most suitable color palette for different detection scenarios and purposes.
5. Laser pointer helps you locate the inspected object in dim environments or small areas. Temperature exceedance alarm helps locate the anomaly spot efficiently.
6.Wide temperature range of -68°F to +1022°F allows for adjusting the range to focus on specific inspection areas.
7. Built-in 3000mAh rechargeable battery provides an 8-hour runtime, sufficient for a full day of work.

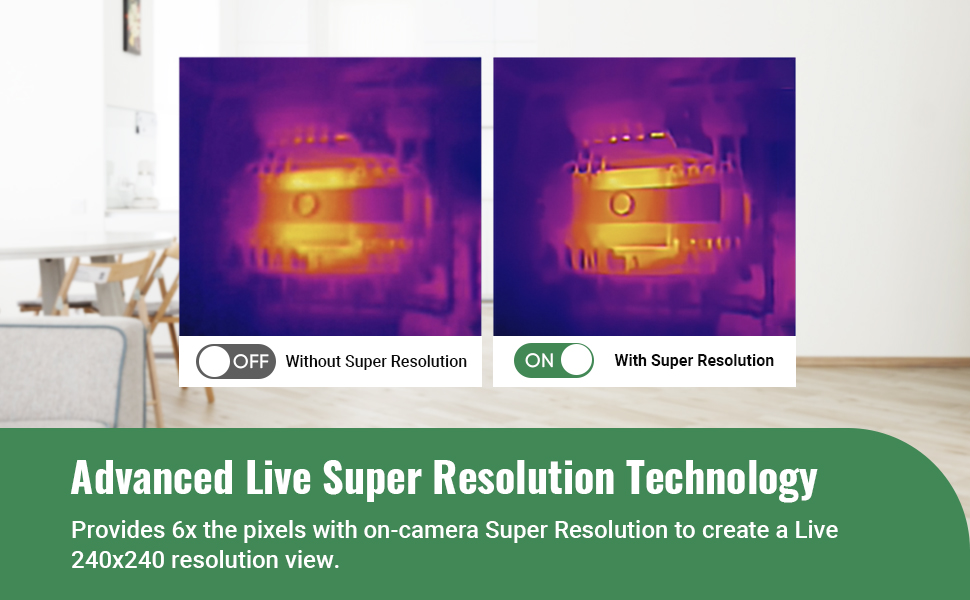

Enable Super Resolution image function, the image quality will be upscaled from 96*96 to 240*240, providing a clear vision during inspection works. The 25HZ frame rate ensures a smooth live viewing experience without freezes or lags.
The HF96 is equipped with emissivity parameters for common objects. Select the appropriate parameters to obtain more accurate measurement data.
It is an indispensable tool for homeowners and handymen alike, helping to easily detect thermal anomalies. It is the ideal solution for identifying problems such as missing insulation, air leaks, water damage, HVAC thermal anomalies, and automotive, electrical and mechanical failures.
